Course Content

 Identify PLC Modules Type Like (S7-300 & S7-1500) .

Creation OB1 ,FC,FB, DB in TIA Portal .

Programming Language by Function Block (Logic Gate) .

Advanced Blocks Like ( MOV , Compare, Math ,PID , Motor Motions , …..) .

PID Controller Blocks .

Encoders Applications .

More Advanced Tasks by Factory IO Simulations.

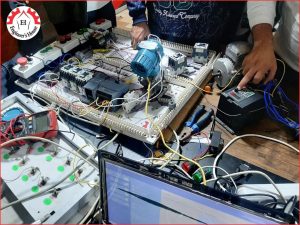

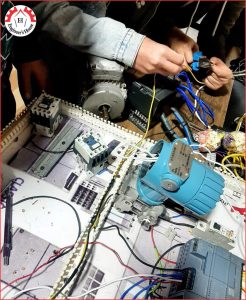

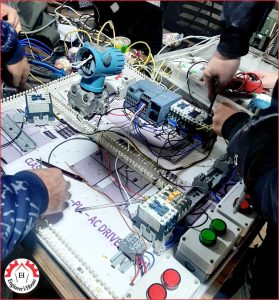

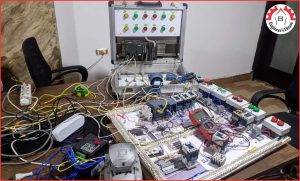

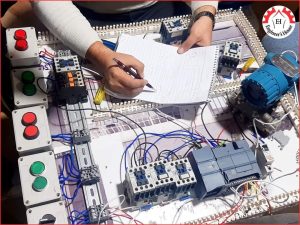

Practical Projects +10 in Kit S7-300 .

Analog Signals ( Hardware & Software ) Configure By TIA Portal .

How To Connection Instrumentation & Sensors in PLC (AI / AO ) .

Creation Analog Blocks Like ( Nomrx ,Scaling , …..)

How To Connect PLC With HMI (MORE Applications ) .

How To Connect PLC with AC Drive ( VFD ) (MORE Applications ) .

Communications Protocols Like ( Modbus ,Profinet , Profibus ,…..) .

Review Big projects for some companies like (Cement , Chemicals , Steel ,…)

Final Advanced Practical Project will be done by all attendance.
